Extend the Life of Your Ceramic Packages: The Manufacturer’s Guide to Premium Solder Columns
In the high-stakes world of aerospace, defense, and high-performance computing, the most expensive component on your board is often the large Ceramic Column Grid Array (CCGA) package. Yet, the success or failure of that component often comes down to the smallest detail: the interconnect.
If you are seeing solder joint fatigue or worrying about CTE (Coefficient of Thermal Expansion) mismatch in harsh environments, standard BGAs simply won't cut it.
As a direct manufacturer of high-reliability CCGA Solder Columns, we help engineers solve the "thermal stress problem" every day. Here is why upgrading your column technology is the single best investment you can make for device longevity—and how to choose the right partner for the job.
The Problem: Why Ceramics and PCBs Don't Get Along
The core challenge is physics. Your ceramic package is rigid and thermally stable. Your organic PCB is not—it expands and contracts significantly as temperatures change.
When you connect these two with a standard solder ball, the ball is forced to absorb all that shear stress. It’s a rigid connection in a dynamic environment. The result? Cracks, open circuits, and catastrophic field failure.

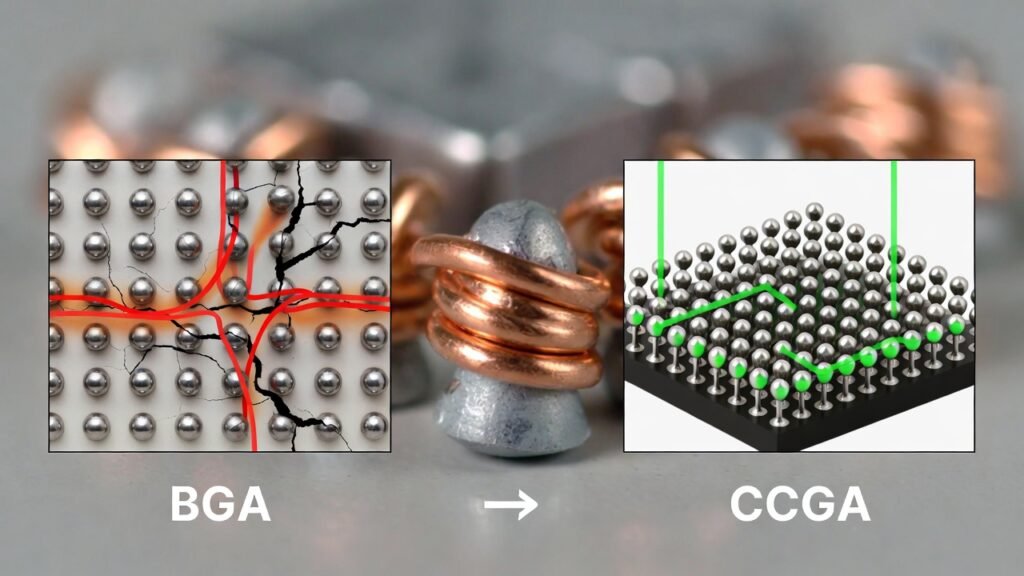

The Solution: Solder Columns as "Stress Absorbers"
CCGA Solder Columns are not just connectors; they are mechanical shock absorbers. By increasing the standoff height (typically to 1.27mm or 2.21mm), our columns allow the difference in expansion to distribute over the length of the column rather than concentrating at the joint interface.
The Data Speaks for Itself: Switching from BGA balls to our Solder Columns can increase the thermal fatigue life of your assembly by 10x or more.
Why Sourcing Direct from the Manufacturer Matters
Many "suppliers" in the market are simply distributors. When dealing with mission-critical hardware, you need direct access to the source. Here is the advantage of working with [Your Company Name]:
1. Precision Metallurgy (The "Secret Sauce") We don't guess with alloys. We manufacture strictly controlled high-melting-point alloys, primarily:
- Pb90/Sn10
- Pb80/Sn20
We ensure the melting point hierarchy is preserved. Our columns remain solid while your assembly solder reflows, guaranteeing a perfect, consistent standoff height every time.
2. Copper-Wrapped vs. Plain: We Make Both Do you need maximum electrical conductivity or maximum structural rigidity?
- Copper Wrapped Columns: We wind a proprietary copper ribbon around the high-lead core. This provides superior structural integrity and reworkability.
- Plain Solder Columns: Perfect for applications requiring specific casting characteristics without the copper interface.
3. Customization Capability Because we own the production line, we aren't limited to a catalog.
- Need a non-standard diameter?
- Need a specific length to clear nearby components?
- Need a unique surface finish for specific wetting properties? We can cast and wind it.
Buying Security, Not Just Parts
When you send an inquiry to us, you aren't talking to a generalist salesperson. You are engaging with a team that understands intermetallic growth, reflow profiles, and shear strength testing.
We provide:
- Full Lot Traceability: Essential for aerospace and defense auditing.
- Sample Testing: Verify our quality on your own line before committing.
- Stable Lead Times: We control the raw materials, so you don't face unexpected delays.
Take the Next Step for Your Design
Don't let a generic interconnect compromise a high-value ceramic package. Ensure your device can survive the thermal cycles of the real world.
Are you currently designing a CCGA package or facing reliability issues?
